| Nominal Capacity: | 105ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ≤0.3mΩ | Operating Votage: | 2.5~3.65V |
| Dimension: | 130*36*200mm | Battery Weight: | 1.98±0.10kg |

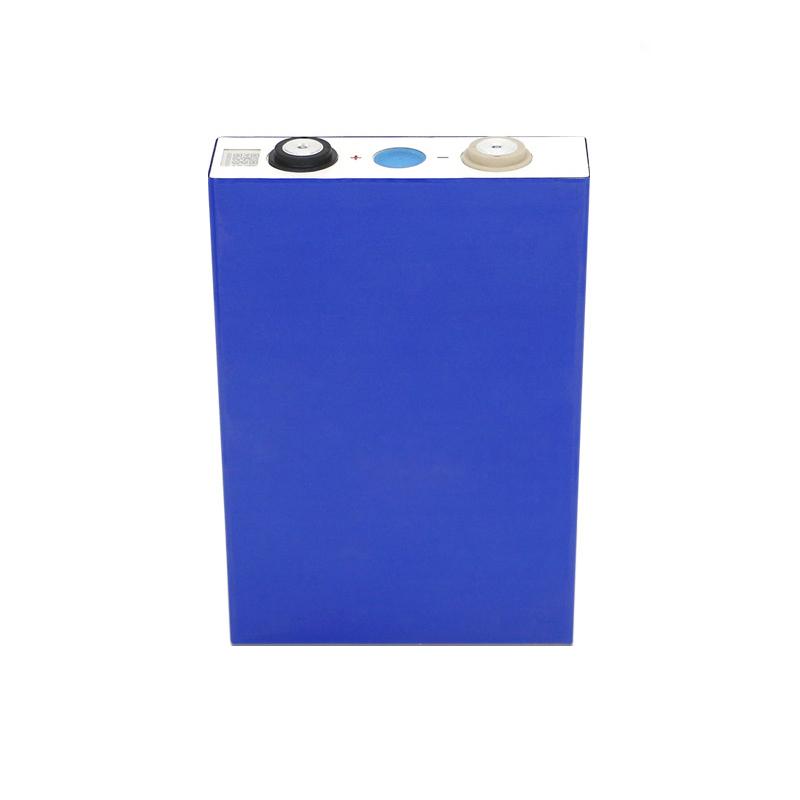

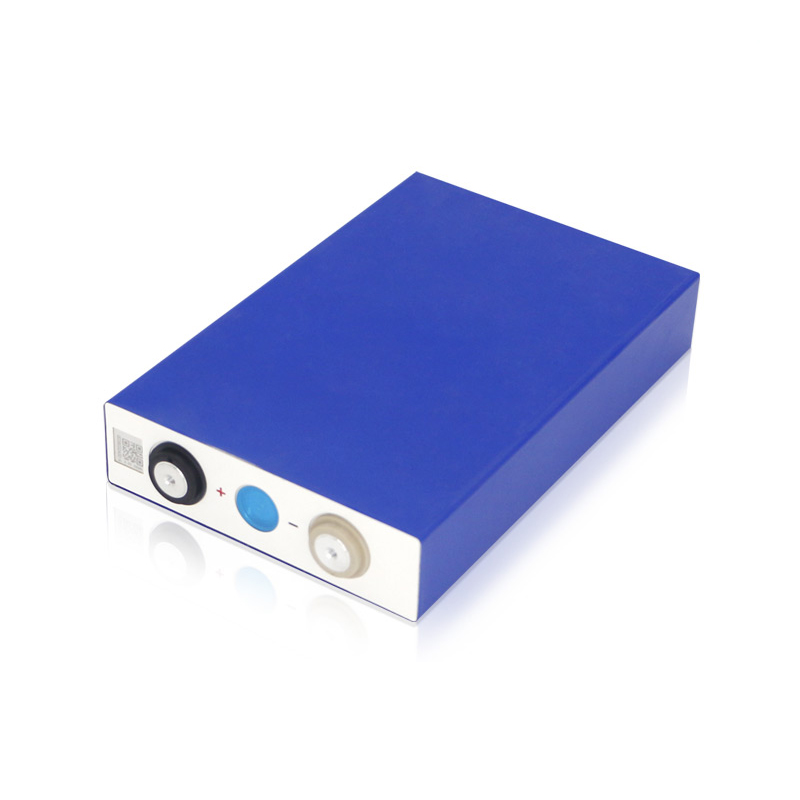

3.2V 105Ah Lithium LiFePO4 Battery
We provide 3.2V105Ah high-power Lithium iron phosphate cell which has long cycles for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system, RV, caravan…
Application:
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools… Solar and wind power system, RV, caravan…Back-up system and UPS… Torch LED light emergency light.
No | Item | Parameter Specification | |
1 | Battery Module | Lithium iron phosphate cell | |
2 | Nominal Capacity | 105Ah | |
3 | Nominal Voltage | 3.2 V | |
4 | Internal Resistance | ≤0.3mΩ | |
5 | Charging(CC-CV) | Recommend Constant Current | 105A (1C) |
Charging Upper Limit Voltage | 3.65V | ||
6 | Discharging | Max Continuous Discharge Current | 105A (1C) |
Discharging Cut-off Voltage | 2.5V | ||
7 | Recommended SOC Usage Window | SOC: 10%~90% | |
8 | Operation Thermal Ambient | Charging | 0°C ~ 65°C |
Discharging | -20°C ~ 55°C | ||
9 | Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 65°C |
Long term (within 1 year) | -20°C ~ 55°C | ||
10 | Storage Humidity | < 70% | |
11 | Battery Weight | 1.98±0.10kg | |
12 | Battery Dimension | 130*36*200mm | |
13 | Shell Material | Aluminium | |
