| Nominal Capacity: | 102Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 2.5V-3.65V |
| Dimension: | 115.5*160.0*49.9mm | Battery Weight: | 1950±75g |
Product Features

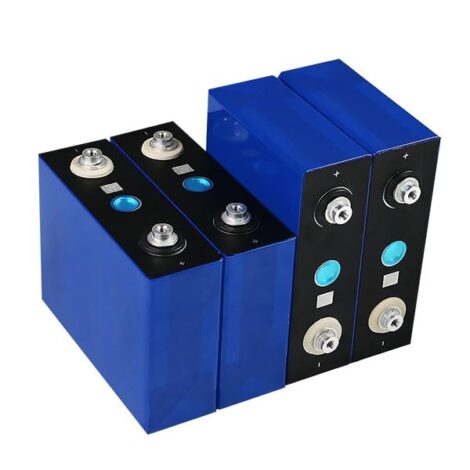

1.The big capacity 3.2V 102Ah prismatic LiFePO4 battery cell with good performance.
2. Nice performance on safety:It is almost the safest lithium battery type recognized in this industry.
3. Lithium iron phosphate is a new type of electrode material for lithium-ion batteries. It is characterized by large discharge capacity, low price, non-toxicity and no environmental pollution.
4. Specially designed for power supply application like EV.
5. long cycle life more than 3000times@80%DOD
6. 1C charging and 2C discharging rate
Battery Dimensions
Parameters
Nominal Capacity | 102Ah (25°C, 0.5C, 2.5~3.65V) |
Nominal Voltage | 3.2V |
Weight | 1950±75g |
AC Impedance | ≤0.5mΩ@°C (1kHz@50%SOC) |
Charging Cut-off Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V/2.0V |
Maximum Continuous Charge Current | 100A |
Maximum Continuous Discharge Current | 200A |
Storage Environment | -40°C~60°C 5%RH~95%RH |
Operating Temperature Range | Charge: 0~60°C |
Discharge: -20~60°C | |
Dimension | 115.5*160.0*49.9mm |
