| Nominal Capacity: | 100ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | ＜0.6mΩ | Operating Votage: | 2.0~3.65V |
| Dimension: | 60±1*320±1*338±1(mm) | Battery Weight: | 1.90kg±0.2kg |

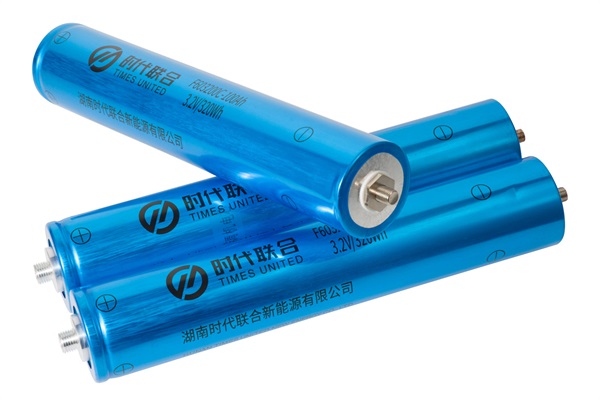

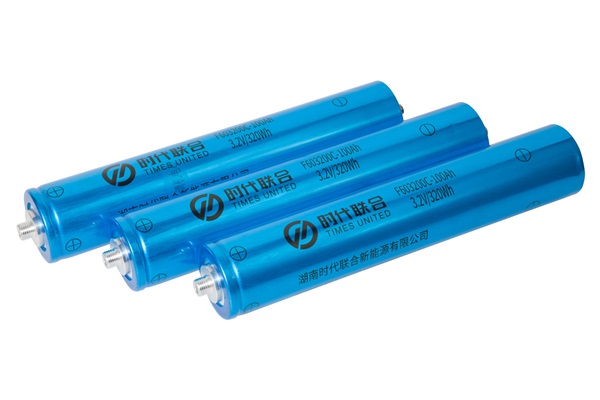

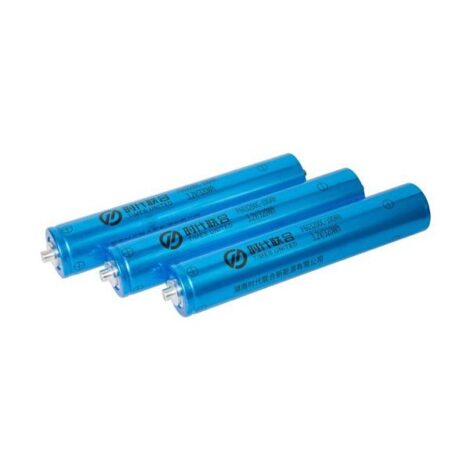

3.2V 100Ah lithium iron phosphate LiFePO4 cylindrical battery cells
The 100ah cylindrical battery cell uses an innovative lithium battery production process, low pollution and high quality. Independent development of low-pressure safety system, higher reliability.
Compared with the traditional cylindrical battery, based on maintaining high specific energy and high consistency, it has a high capacity, Low internal resistance, low-temperature rise, high rate, long life, high safety and other advantages. Suitable for new energy storage, steam Car, ship, warehousing logistics, construction machinery and other fields.
Advanges:
Full-tab, High Rate C, Low Resistance,
Even Temperature Rise, High Energy Density, High Consistency
Excel. under various Temp, Long Cycle Life, Low Pollution, High Safety
Item | FB-100Ah |
Nominal Capacity | 100Ah ,0.5 C discharging（25±2℃） |
Nominal Voltage | 3.2V |
Charge Ending Voltage | 3.65V |
Discharge Ending Voltage | 2.5V（≥0℃） |
Standard Discharging Method | 25±2℃ 0.5C constant current discharge to 2.5V |
Max. Pulse Charging Current | 1.5C (15℃～45℃, 50%SOC) ≤30S |
Max. Pulse Discharging Current | 3C (15℃～45℃, 50%SOC) ≤30S |
Operating environment | Charging: -0℃-55℃, max.90%RH |
Impedance | ＜0.6mΩ |
Size | Diameter:60±1mm |
Cell Weight | 1.90kg±0.2kg |
Mass Energy Density | 168Wh/Kg |
Volume Energy Density | 364Wh/L |
Cycle Life | 2000times @80%DOD |
