Product details
Port:Shenzhen, China
Production Capacity:5000PCS Per Week
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash
Model NO.:FB-2410
Trademark:Delong Electric Bicycle Battery
Transport Package:EPE Pearl Cotton and Thick Cardboard Cartons
Specification:148*150*257mm
Origin:China
HS Code:8506500000
Type:Battery
Weight:3kg
Cycle Life:500 Cycles
Voltage:24V
Nominal Capacity:2500mAh
Battery Type:18650 Battery
24V 10AH 15AH Electric Bicycle Battery Little Frosch Type for 300W Ebike
Recommend to use for 24V 200W, 24V 250W, 24V 350W, 24V 500W Motor.

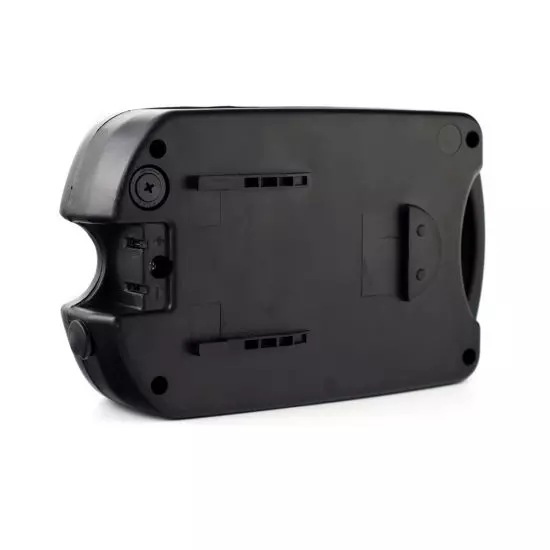

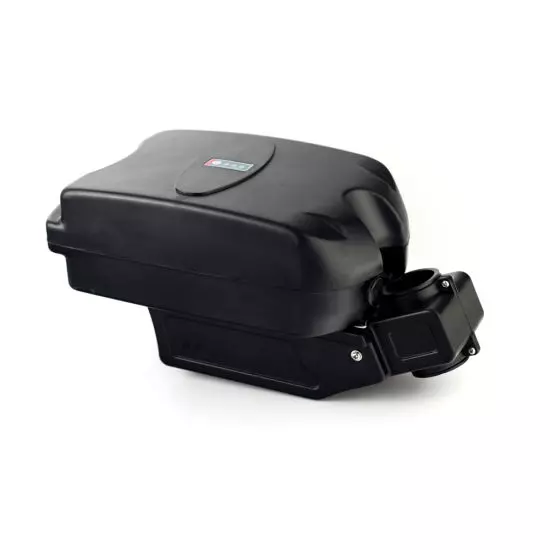

The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
Battery Model | 24V 10Ah |
Nominal Capacity (AH) | 10ah |
Nominal Voltage (V) | 24V |
Source Resistance (mΩ) | < 40 |
Cell Specification | 3.7V 2500mAh |
Cell Combination | 4-paralle 6-series |
Cell type | 18650 |
Cell Quantity (parallel*series) | 40 |
Discharge Cutoff Voltage (V) | 41+/-1V |
Charge Cutoff Voltage (V) | 16.8V |
Rated Discharge Current (A) | 5A |
Instantaneous Maximum Discharge Current (A) | 15A |
Maximum Continuous Discharge Current (A) | 5A |
Maximum Continuous Charge Current (A) | 8A |
Charge Mode | CC/CV |
Standard Charge Current (A) | 2A |
Charge Time under Standard Charge Current | 6 |
Fast Charge Current (A) | 5A |
