Product Parameter
| Item | Specification |

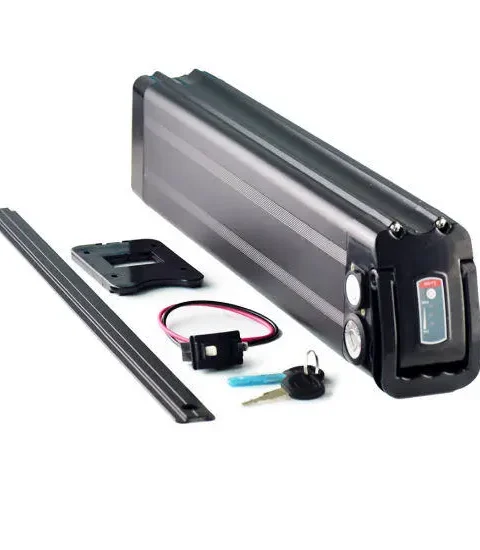

| Technical data: | FB-36V10P |
| Chemistry: | Li-ion/Lithium ion |
| No. of cells: | 18650 10S5P |
| Capacity: | 10Ah discharging at 0.2C |
| Nominal Voltage: | 36V |
| Standard charge voltage: | 42V±0.05V |
| Standard discharge voltage: | 30±0.05V |
| Impedance: | ≤ 150 mΩ |
| Norminal Charge Current: | 0.5C |
| Maximum Charge Current: | <5Ah (can be adjustable) |
| Maximum Discharge Current: | <15Ah (can be adjustable) |
| Maximum Pulse discharge current: | ≤ 35A (can be adjustable) |
| Charge end current: | 0.01C |
| Operation Temperature Range: | Charge: 0~45ºC |
| Discharge: -20~60ºC | |
| Storage Temperature: | Less than 1 year: -20~25ºC |
| less than 3 months: -20~40ºC | |
| Weight: | Approx 2.5kg |
| Dimension: | Length:Max. 495mm |
| Width:Max. 70mm | |
| Thickness:Max. 38mm |
Characteristics:
1. Extremely safe and stable chemistry: BMS or PCB built inside to protect the battery over charge and discharge.
2. Long life-cycle: 800 times cycle life.
3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
4. Wide operating temperature: High temperature resistance(-20~60 degrees Celsius).
5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells, Low self-discharge rate, less than 3% monthly.
6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity
7. Green product: Environment friendly, clean and green energy, no pollution on our environment.
8. Quality assurance: CE/Rohs/MSDS/UN38.3/FCC certificates
CE,ROHS UN38.3,TUV,KC etc…product certificates.
Applications:
1. Telephone switchboard, electric equipment and power instruments
2. UPS, emergency application and medical devices
3. Power transmission and transformer station and accident lighting
4. Fire fighting, safety device and alarm monitoring
5. Automatic office system
6. Radio communication system
7. Emergency lighting and car/ship starting system
8. Portable electric appliances and mining system
9. Traffic and navigation signal lamp
10. Solar energy: solar street lights, solar LED lights
