| Nominal Capacity: | 75Ah | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Internal Impedence: | ≤50mΩ | Operating Votage: | 14.4±0.15V |
| Dimension: | (260±2)mm * (168±2)mm * (212±3)mm | Battery Weight: | 9.8±0.3kg |

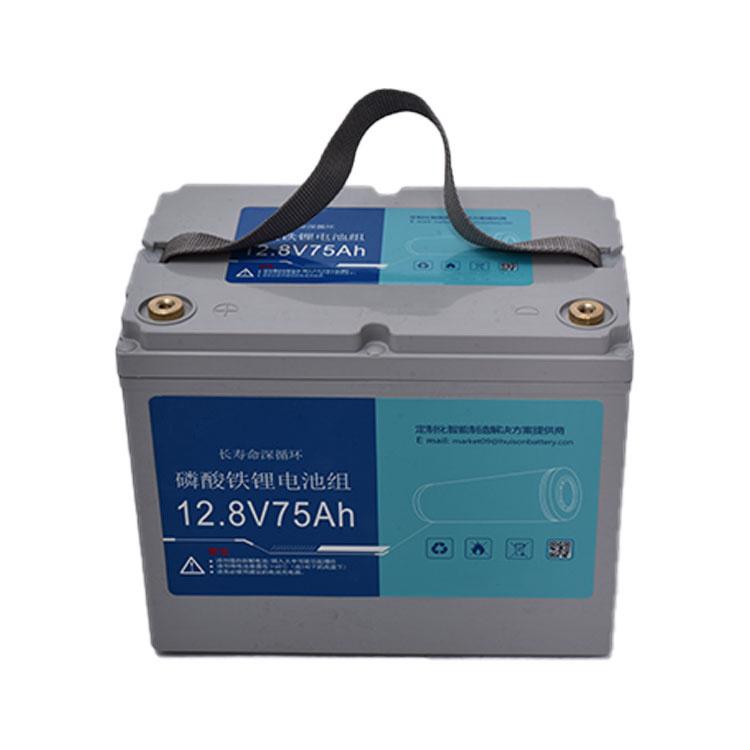

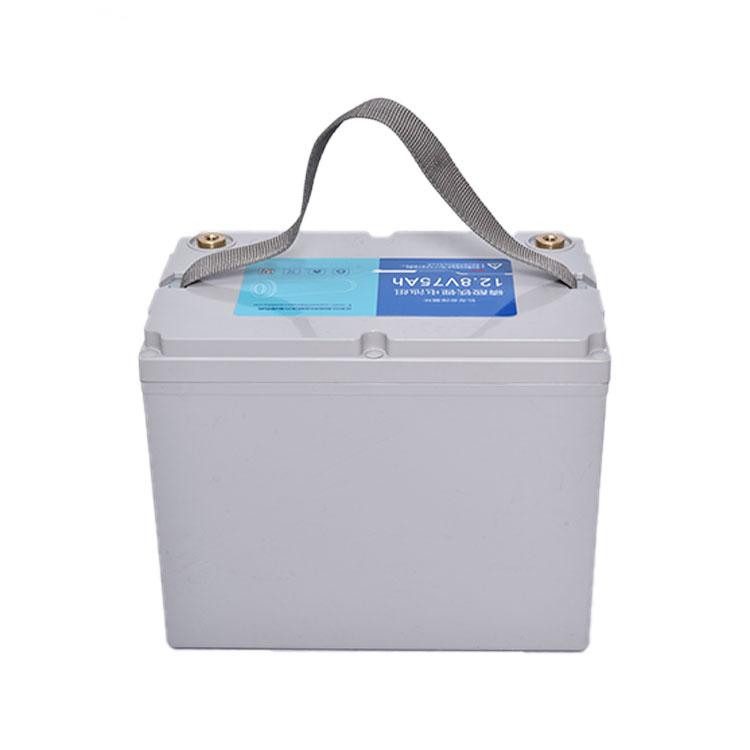

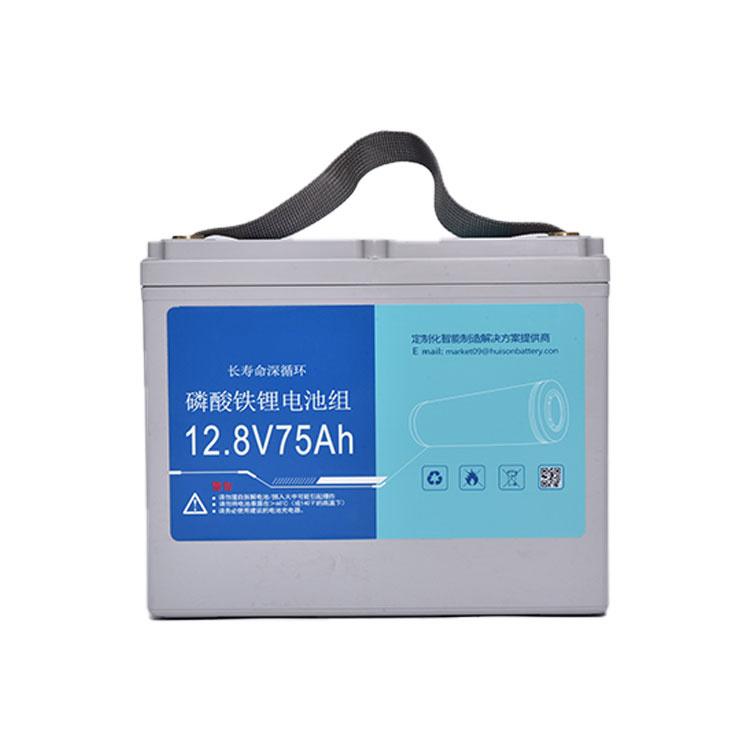

12.8V 75AH lifepo4 battery pack 26650 battery cell
1 Product Index
1.1Product Parameter
No. | Items | Parameter | |
1 | Product Model | JG-4IFR12.8-75-Y (26650-3.2V-4S22P) | |
2 | Normal Voltage | 12.8V | |
3 | Rated Capacity | 75Ah(C5) | |
4 | Min Capacity | 72Ah(C5) | |
5 | Energy | About 960Wh | |
6 | Internal Resistance | ≤50mΩ | |
7 | Size | (260±2)mm * (168±2)mm * (212±3)mm | |
8 | Weight | 9.8±0.3kg | |
9 | Shell Material | Plastic | |
10 | Charge Voltage | 14.4±0.15V | |
11 | Standard Cut-off Voltage | About 10.0V | |
12 | Charge Current | ≤37.5A | |
13 | Charging Cut-off Current | 750mA~1500mA | |
14 | Discharge Current | Normal Current | 37.5A |
Max Continuous Current | 37.5A – 60A(≤5min) | ||
60A – 70A(≤10S) | |||
15 | Passive Protection | Over charge protection, Over discharge protection, Temperature protection, Balanced function | |

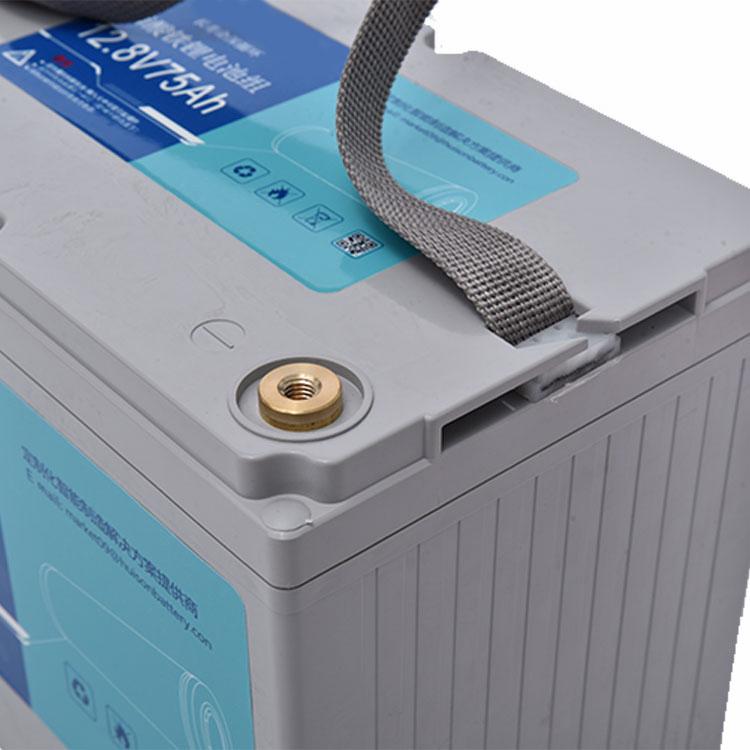

16 | Positive | M8 hole | |
17 | Negative | M8 hole | |
18 | Electricity Display Board | SOC | |
19 | Charge Retention | After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80% | |
20 | Cycle Time | The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1cycle time) | |
1.2Characteristics Curve
2 Battery Usages
2.1 Charge
Charging terminal of battery is connected tochargerappropriate with it, and then charge. Charging voltage is14.4±0.15V. Do
not reverse.
2.2 Discharge
Note that the positive and negative (poles are not reversed as indicated by the battery case logo), then connect to the matching load.
3 Battery Test
Single cell and Protection board specification are only results ofstandard test,this is for reference.
3.1 Standard Test Requirements
Battery tested must be done within 1 month after production. If the battery is not tested on time due to transportation or other reasons, the battery can be recharged and discharged for testing.
All tests in this specification should be done in standard atmospheric conditions. (Temperature: 25±2°C; relative humidity: 65±20%).
Standard charge voltage is 14.4±0.15V, standard discharge cutoff voltage is about10.0V; standard current is I5 (when I5 > the normal work current, test according to the normal current).
3.2 Standard Charge
Charge the battery with Lithium ion battery special test cabinet, with standard charging voltage, standard current, constant
current and constant voltage charging to the current dropping to 0.05 I5 ·
3.3 Standard Discharge
Discharge the battery with Lithium ion battery special test cabinet, discharge to standard discharge cutoff voltage with standard current, constant discharging or until the battery stops.
4 Battery Service Environment
Battery discharge ambient temperature is -20°C ~ + 60°C (When the ambient temperature >45°C , please pay attention to the ventilation and heat dissipation), Charging temperature is 0°C ~ + 45°C . Ambient humidity RH is ≦ 85%. Pay attention to waterproof when ambient humidity is > 85%, at the same time the battery surface condensation phenomenon should be avoided.
