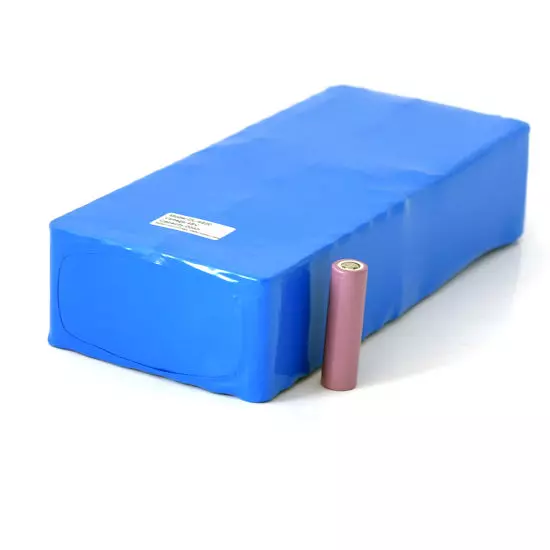

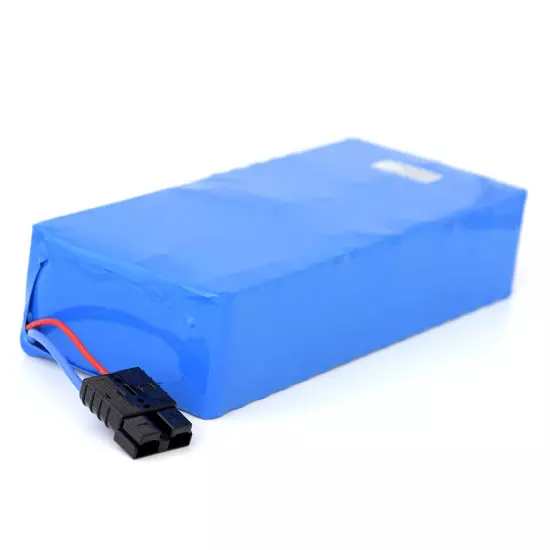

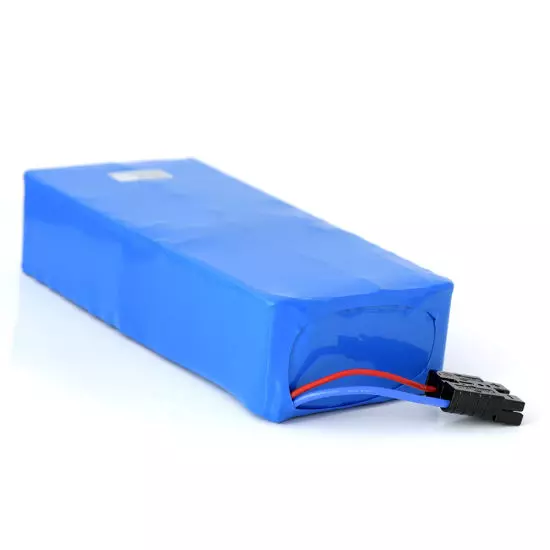

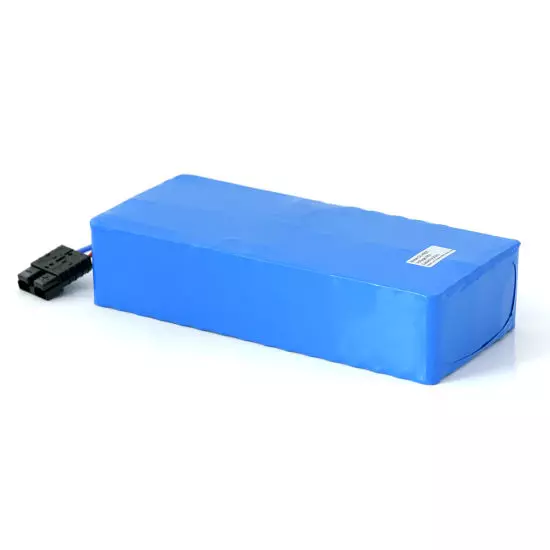

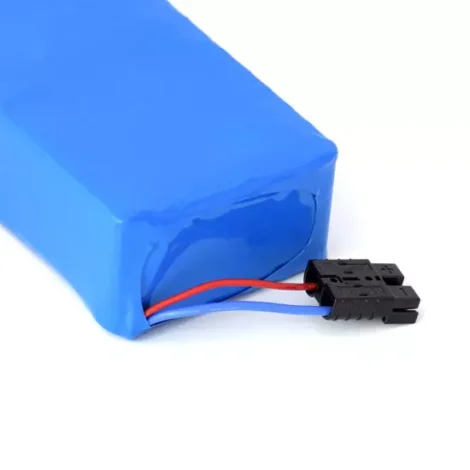

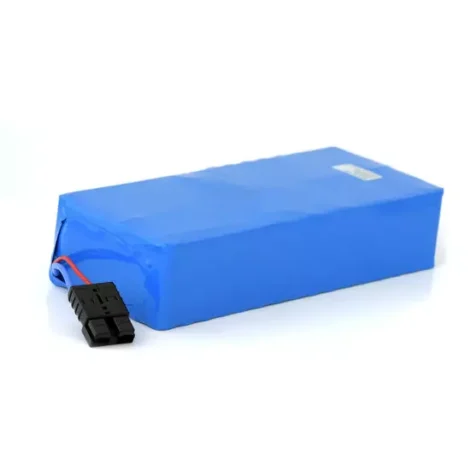

1000W 48V 20ah Li-ion Lithium Battery for Electric Bike

Port:Shenzhen, China

Production Capacity:4, 000 Packs/Week

Payment Terms:L/C, T/T, Paypal, Money Gram

Model NO.:FB-4820

Rated Capacity:20ah

Standard Voltage:48V

Usage:Electric Bike

Electrolyte:Li-ion

Components:Battery Cells+BMS+Connector

Battery Type:18650 Lithium Ion Battery Cell

Product Name:Customized 1000W 48V 20ah Lithium Battery Pack for

Warranty:1 Year

1000W 48v 20ah Li-ion lithium battery for electric bike


Product description:

Model FB-4820
Nominal voltage48V
Charge voltage54.6V
Nominal capacity20Ah
Battery typeGrade A 18650 lithium ion battery cell
Battery configation13S8P
Standard charge current4A
Continuous discharge current25A
Momentary discharge current75A
Discharge cut off voltage36.4V
Battery pack dimension300*130*70mm(L*W*H)
Net weight5.1KG
Warranty1 year
Lifecycle500 times
Charge temperature0°C ~45°C
Discharge temperature-20°C ~60°C
BMS protectionover-charge,over-discharge,over-current,short circuit
Fit motor750W,1000W



18650 battery cells quality:

Quality Lithium-ion cells with high power and energy density;
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
No memory effect, low self-discharge rate;
Environment-friendly;
Long cycle life,after 500 times charge and discharge,the remaining capacity is 80%
