Products Details
Product name

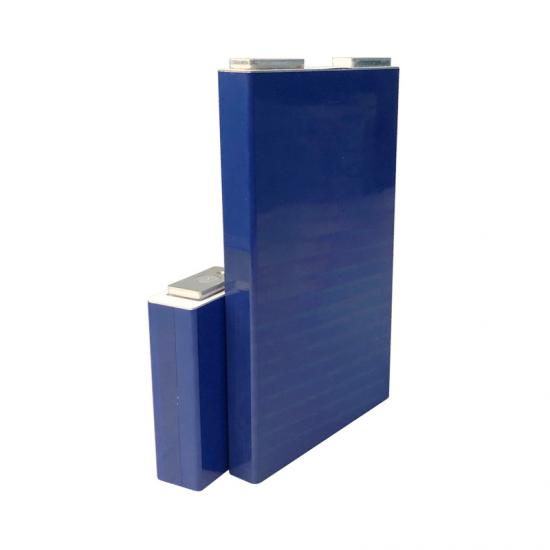

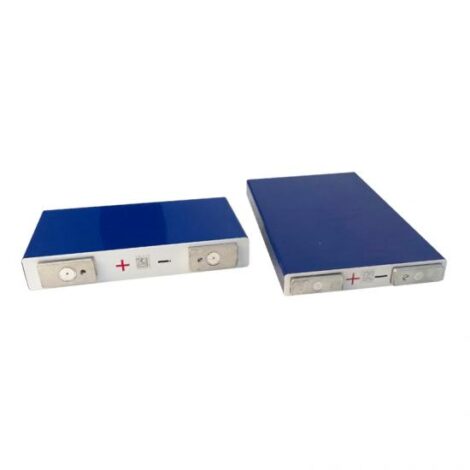

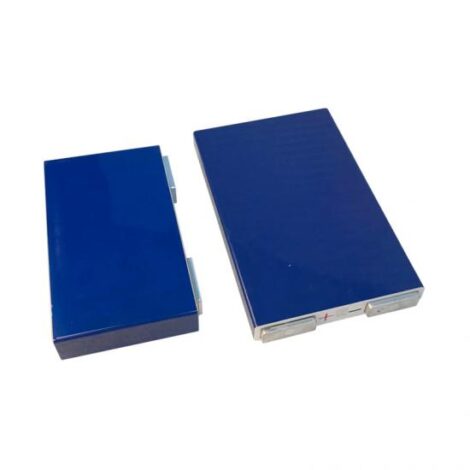

10 Mins Fast Charging Yinlong LTO 2.3V 33Ah Deep Cycle B
Specification
Item | Parameters | |
Model | OSN-13020520-LTO33Ah | |
Materials | LTO | |
Nominal capacity | 33Ah | |
Nominal voltage | 2.3 V | |
Dimension | 130*205*20mm | |
| Cell construction type | Prismatic | |
Weight | 1.22kg | |
Internal Resistance | ≤1mΩ | |
Operating voltage | Charge cut-off voltage | 2.8 V |
Discharge cut-off voltage | 1.5 V | |
Maximum charge current | 4C | |
Maximum discharge current ccucurrentcucurrent | 10C | |
Cycle life | 30000 times | |
Operating Thermal Ambient | Charging | -50℃~ 65℃ |
Discharging | -50℃~ 65℃ | |
Storage Thermal Ambient | Short term (within 1 month) | -20℃~ 45℃ |
Short term (within 1 year) | -20℃~ 20℃ | |
Highlight
- Super long cycle life: over 30,000 times
- Faster charge: 10mins fully charged
- Higher discharge rate: Up to 10C
- Wide working temperature range: -50°C ~ 65°C
- High Safety(No fire, explosion,leakage)
